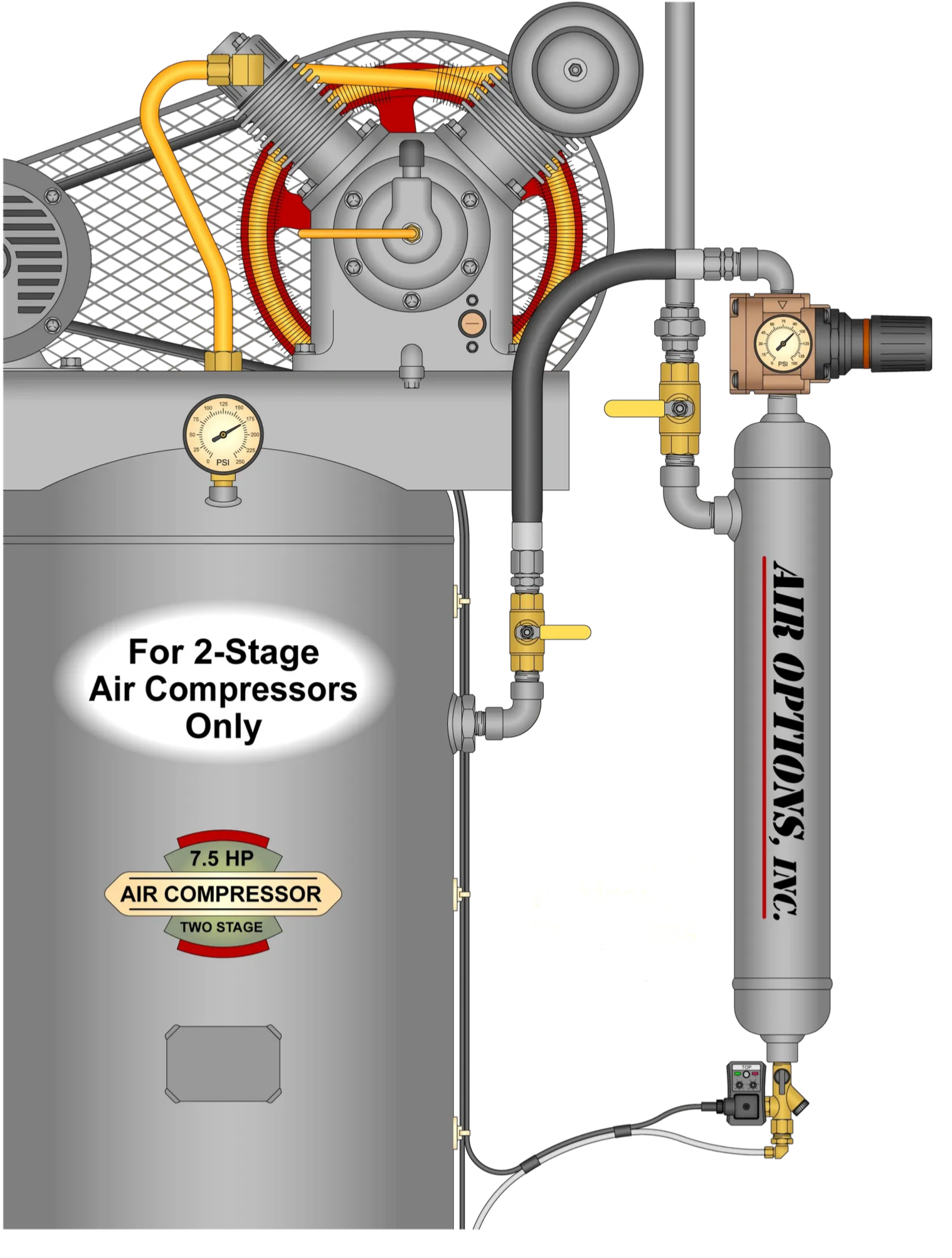

clean Dry compressed Air
for 2-Stage Air Compressors
No filters. No Freon. No maintenance.

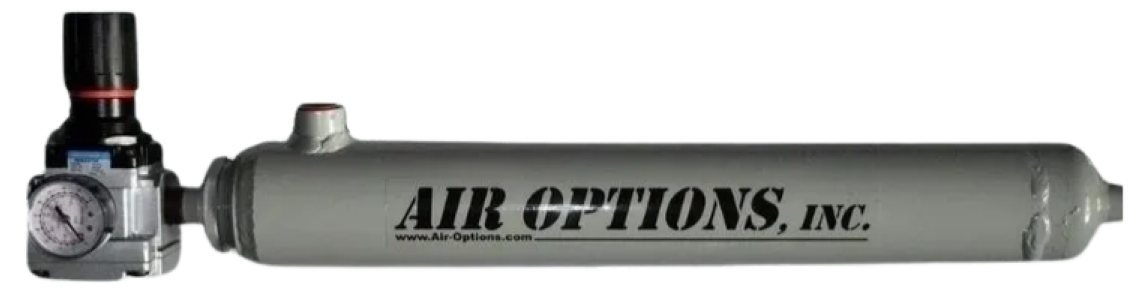

JT Dryers are tough, reliable refrigerated air dryers perfect for auto shops, CNC machining, plasma cutting, metal fabrication, home garages - any General Purpose application that demands clean, dry air every day.
StopS moisture, ReduceS downtime, extendS equipment life
BUY it now!
Free Shipping
to Continental US
for 2 to 5 HP Compressors
for 7.5 to 10 HP Compressors
for 15 to 20 HP Compressors
for 20 to 30 HP Compressors
100% Positive Reviews on ebay
— eBay Customer rudysautoworks (294)— eBay Customer holtdawgs (1513)— eBay Customer 01txag (366)LEARN MORE

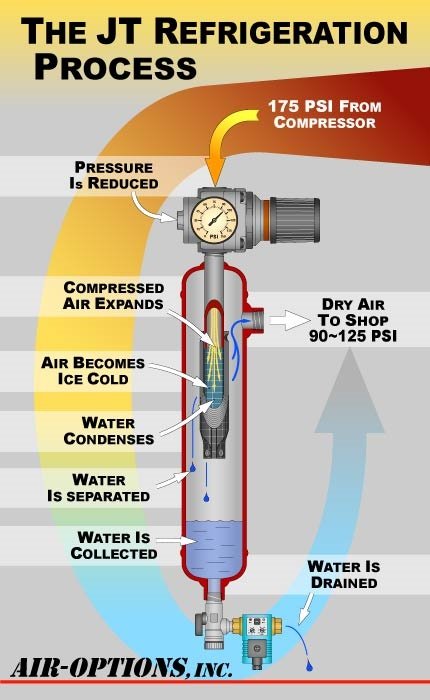

How it Works:
Uses No Refrigerants

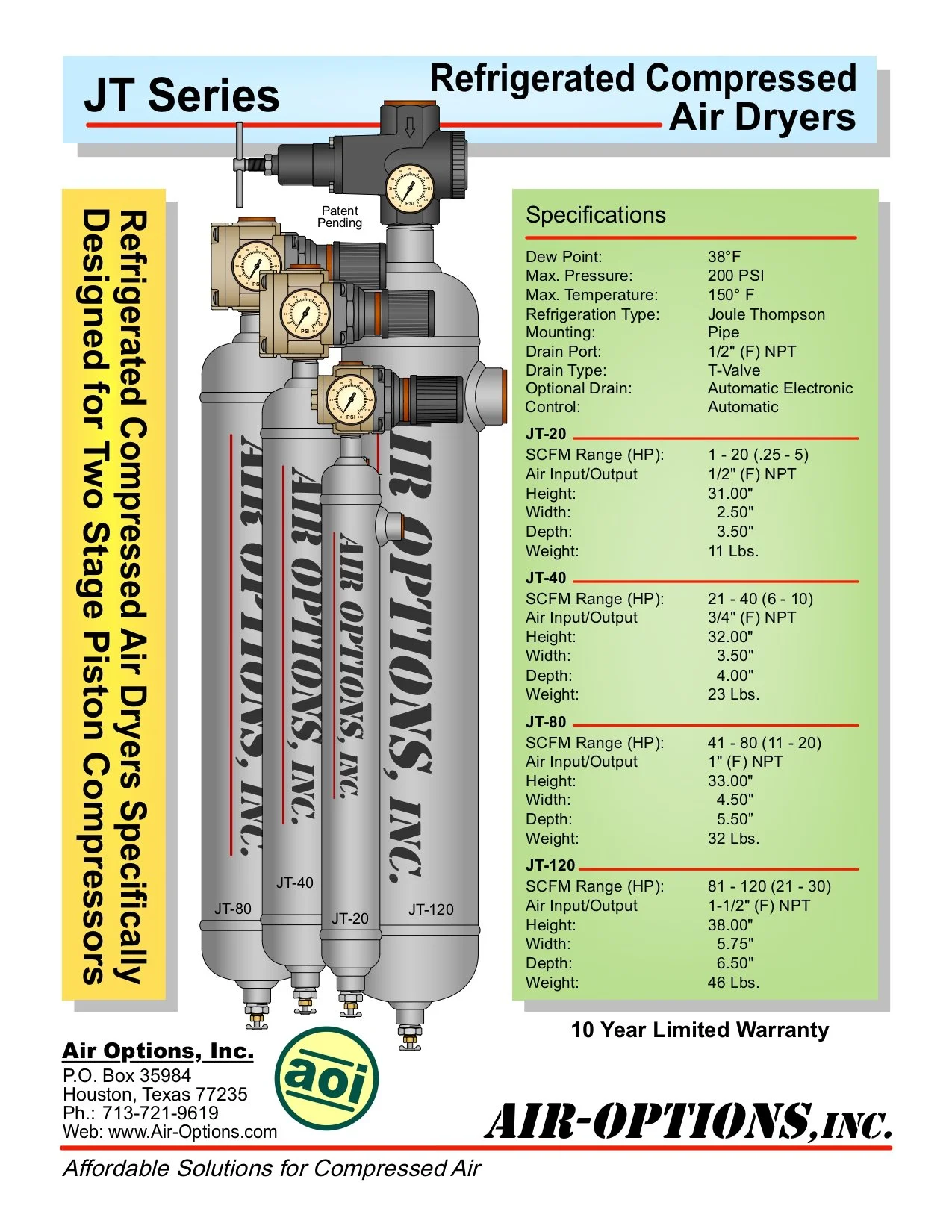

Specification Sheet:

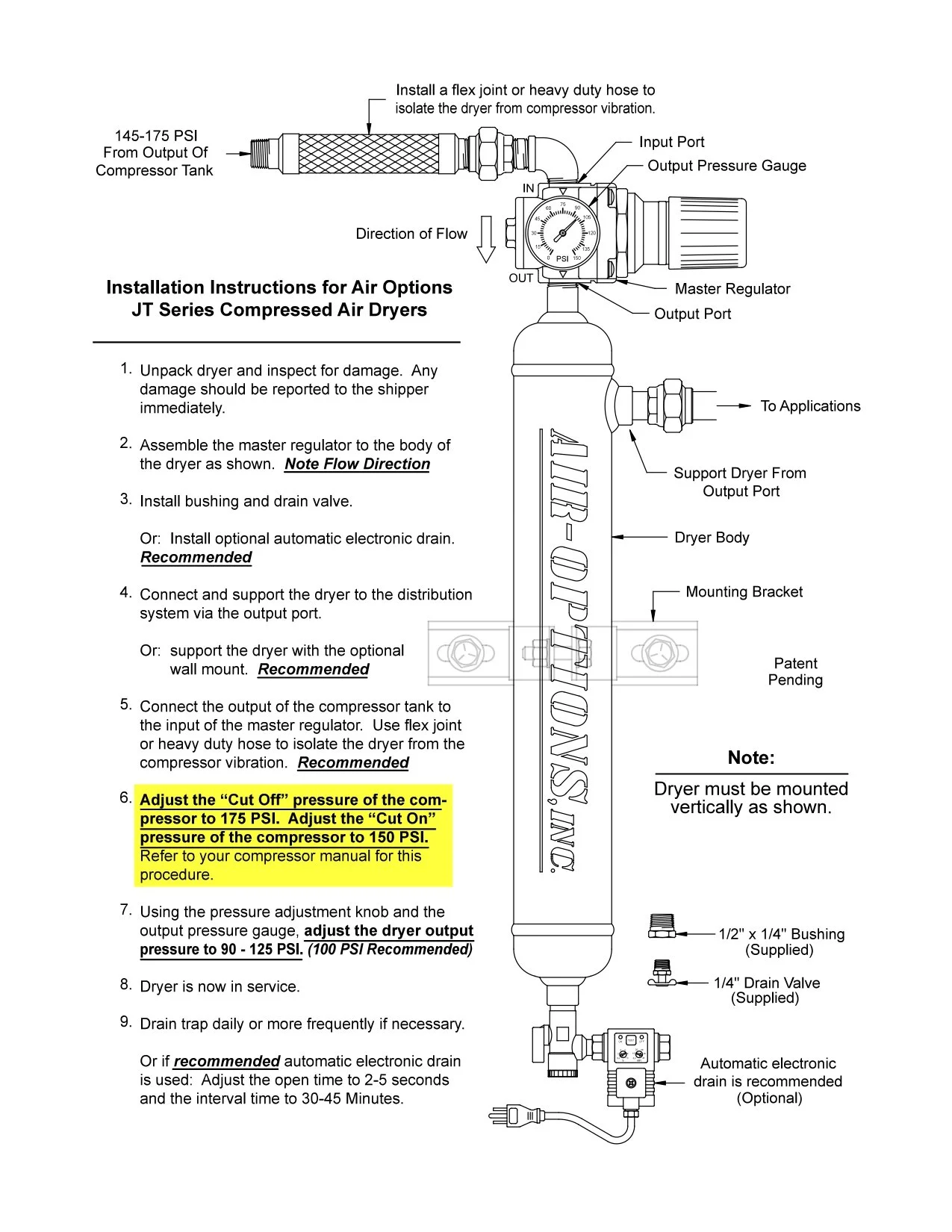

Installation Manual:

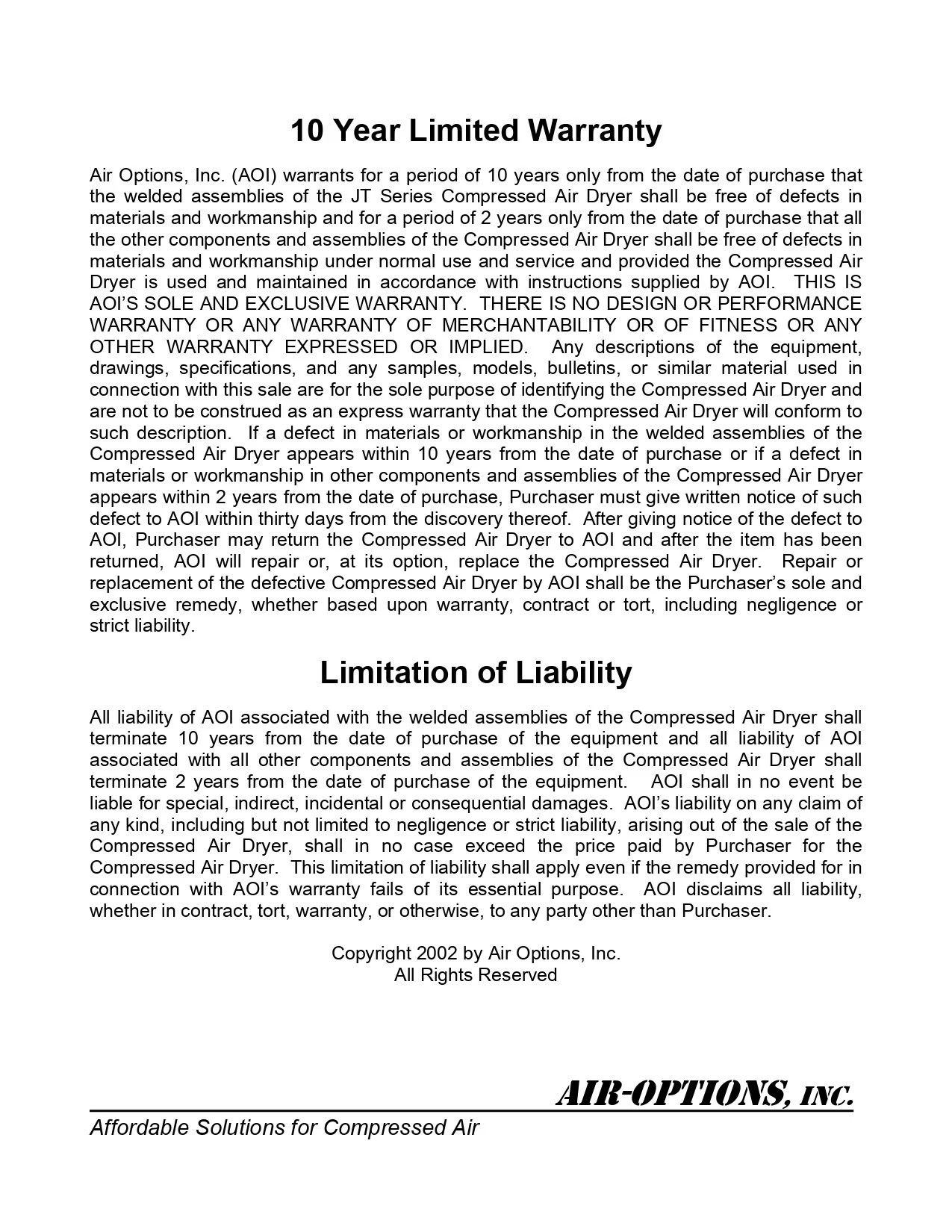

5 year
Warranty:
Frequently Asked Questions
-
Two-stage compressors are designed to operate at the high input pressures that JT Dryers require. Single-stage and screw compressors cannot achieve these pressures.
-
JT Dryers use the Joule-Thomson effect whereby a gas that is expanded becomes very cold. Since cold air cannot carry moisture the way hot air can, both liquid water and water vapor condense out of the air stream. Removed water is collected in the bottom of the dryer and periodically drained.
-
Yes! JT Dryers produce the same overall performance as Freon-based dryers because we use the same basic method to dry air - cooling the air stream until water it carries condenses out.
-
In general, JT Dryers are sized as follows: JT-20 for 3 to 5 HP compressors. JT-40 for 7.5 to 10 HP compressors. JT-80 for 15 to 20 HP compressors. JT-120 for 25 to 30 HP compressors.
-
Yes! Anyone with even modest mechanical skills can easily install one of these dryers. See the installation sheet below.
-
Because we use pressure differential, rather than a complex Freon cycle, to cool the air stream, JT Dryers are far simpler than Freon-based designs and, therefore, less expensive to manufacture.
customer Comments
Easy to install myself and it just does its job. No service calls or media to replace
Had a question about my dryer and it just took a phone call to get it answered.
You don’t realize how much time and money you spend on Freon dryers - until you don’t have to do it anymore!
I’ll be retired before the company has to buy another air dryer!
My air regulator started making noise and they sent a replacement out the same day I called
